DB-2

DigitalBooster from the Digital-Professional-Series!

Amplification of the data formats Märklin-Motorola, mfx®, M4 and DCC.

The DigitalBooster DB-2 is a short circuit protected Power-Amplifier (Booster) for digital model railway layouts. It supplies a digital current of 2.5 Ampere.

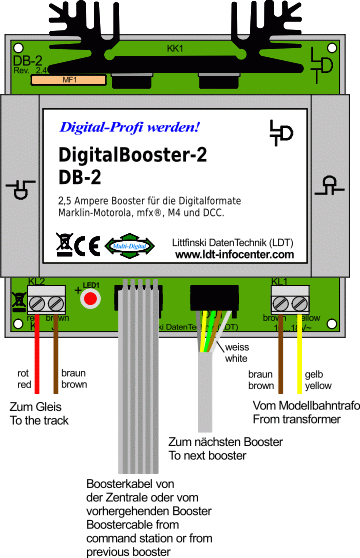

The DB-2 shall be connected to the command station (e.g. Control Unit, Central Station 1 and 2, ECoS, Intellibox 1 and 2, TWIN-CENTER, Commander, EasyControl) or to another booster (e.g. DB-2, DB-4, 6015, 6017, Power 2, Power 3) with the supplied 5-poles booster-bus cable. The first booster shall be always directly connected to the command station via the 5-poles cable. The second booster shall be connected to the first booster etc.

Features of the DB-2

The DigitalBooster DB-2 amplifies the data formats Märklin-Motorola, mfx®, M4 and DCC.
The DB-2 can be connected to any command station which supports the 5-poles booster bus: Control Unit, Central Station 1 and 2, Intellibox 1 and 2, EasyControl, ECoS 1 and 2, Commander, DiCoStation, KeyCommander and TWIN-CENTER.
Each Power-Amplifier DB-2 will be supplied with a 5-poles boosterbus-cable (1m length).
For the supply of the DigitalBooster DB-2 are model railway transformers suitable with a capacity of min. 50VA and an alternating current of 16 to 18 Volt (e.g. from Conrad Electronic Part No. 404288 with 52VA / 18V).
LDT-Components from the Digital-Professional-Series can operate on your digital layout without any problems.
The finished module in a case comes with a 24 month warranty.
Each DigitalBooster DB-2 will be supplied with a detailed operating-/respectively assembly-instruction. Those instructions can be found within the next section.
You can purchase the DigitalBooster DB-2 as a kit (-B) or as a tested finished module in a case (-G). Suitable assembly material is available under Accessories.

Downloads

Instructions regarding this article can be found here: Downloads DB-2.
Instructions for all LDT-Components can be found here: Overview Downloads.

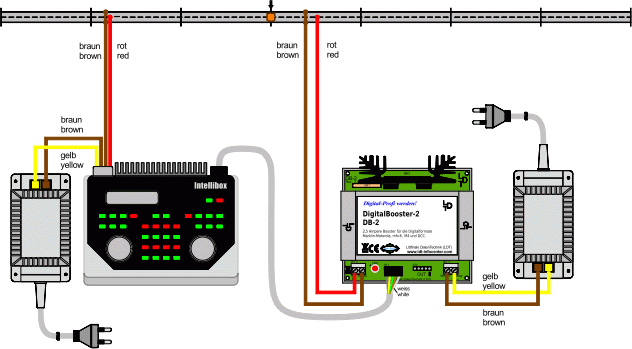

Sample-Connections

Sample-connections regarding this article can be found here: Sample-Connections DB-2.
Sample-connections for all LDT-Components can be found here: Overview Sample-Connections.

Add to Wish List / Prices

Attention: Products can only be added to the Wish List, if you are registered as customer at the LDT WebShop or if you are initially registered by interest of our products.

	Add to Wish List: DB-2-B (Part-No.: 080061): Short circuit protected DigitalBooster (2.5 Ampere) as a kit (49,90 €). Add to Wish List: DB-2-G* (Part-No.: 080063): Short circuit protected DigitalBooster (2.5 Ampere) as a finished module in a case (75,90 €). All prices incl. VAT, plus Shipping.
