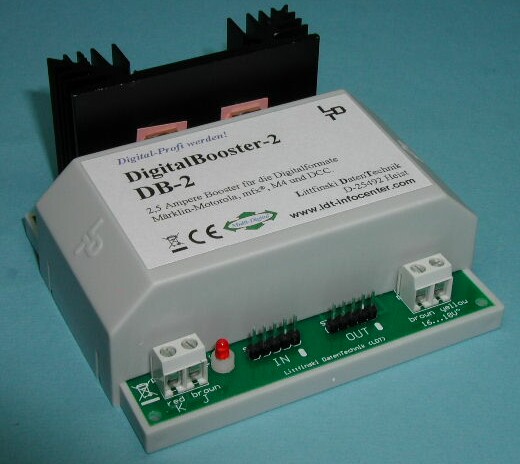

The short-circuit proofed DigitalBooster DB-2 supplies 2.5 Ampere digital current. Connected to the digital control center via a 5-poles booster bus. The DB-2 supports the digital formats Märklin-Motorola, mfx®, M4 and DCC.

DigitalBooster	DB-2	file	edition
Assembly instruction	Kit	PDF	09/2022
Manual	Kit and finished module in a case	PDF	09/2022

All examples are available on the following page: sample connections for DB-2

Subject to technical changes and errors.
